Elnor马达的历史

1907年
基础公司的“强乔斯·德·Coster et公司”,产生一个创新dynamo-kit可以改造第一马达。

1928年
公司现在经营“WELCO”是面向工业和国内生产电动马达的企业。

1958年
Elnor NV成为比利时工业控股ACEC的一部分,重点是大批量生产的电机电器,如洗衣机。

1980年
现有的产品线,开发特殊的汽车燃料泵,阀门执行器、缝纫机、…

1991年
建立Elnor马达公司,专注于为特定的应用和市场定制的电动马达。

1997年
Elnor通过 ISO9001认证的质量体系。

2002年
Elnor的ATEX认证范围的防爆电机。

2006年
全球IECEx证书防爆电机在200年和300年的范围。

2007年
巴西人INMETRO防爆电机证书添加到组合。

2010年
ISO 9001:2008认证的设计、生产和销售的电动马达。

2012年
汤姆Paesmans变成了新的Elnor马达公司的总经理。

2013年
巴西认证更新显示Portaria INMETRO n 179°。

2014年
绝缘系统的UL认证。

2015年
全球IECEx认证我们所有防爆电机。

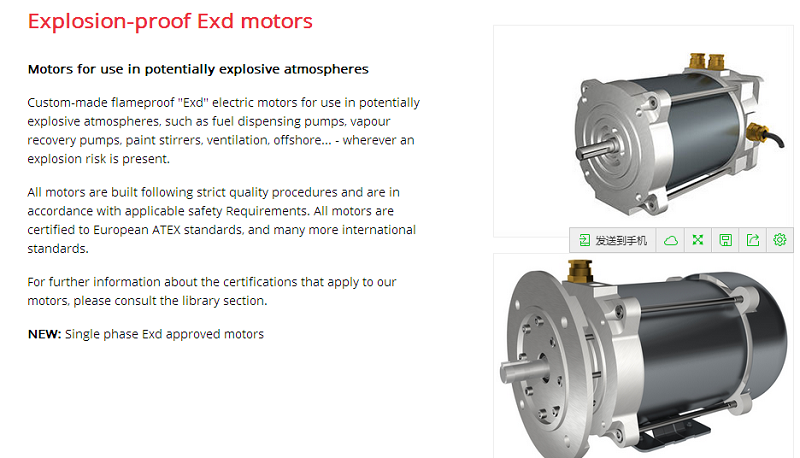

防爆Exd电机
用于潜在的爆炸性atm
定制的防爆“Exd”电动马达用于可能具有爆炸性的大气层,如燃料分配泵、蒸汽回收泵,油漆搅拌器,通风,离岸…-无论爆炸风险。
所有马达都是建立在严格的质量程序和符合安全要求。适用于所有欧洲ATEX认证标准,以及更多的国际标准。
新:单相Exd批准的马达

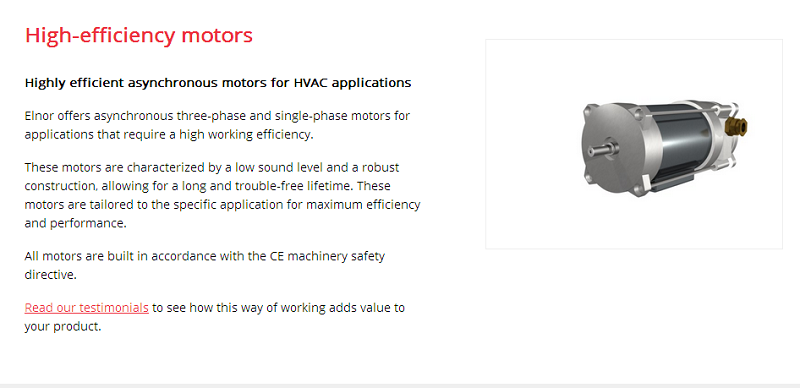

高效的电机
为暖通空调应用高效异步电动机
Elnor提供三相和单相异步电动机的应用程序需要一个高的工作效率。
这些马达的特点是一个低的声音和一个健壮的建设水平,允许在很长一段和无故障寿命。这些马达都是针对特定的应用程序的最大效率和性能。
所有的马达都是建立符合CE机械安全指令。

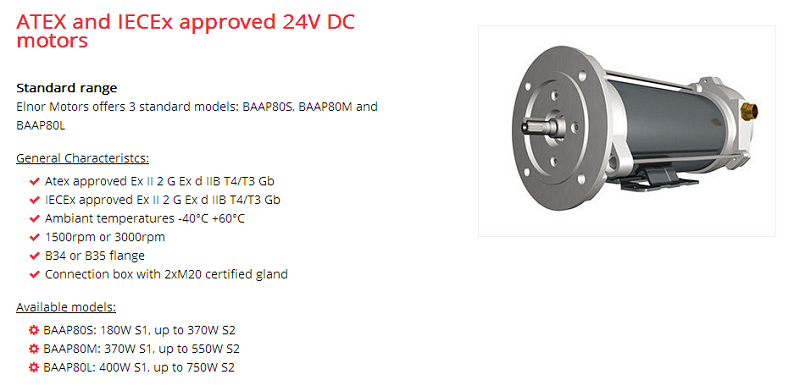

ATEX IECEx批准了24 v直流电机
标准范围内
Elnor马达提供了3个标准模型:BAAP80S,BAAP80M BAAP80L

一般特点:
IIB·Atex批准前二2 G d交货T4 / T3 Gb
·IECEx批准前二2 G d IIB&nbs交货

Ambiant温度-40°C + 60°C
·1500 rpm或3000 rpm
·B34或B35法兰
·连接盒2 xm20认证腺
可用的模型:
·BAAP80S:180 w S1,370 w S2
·BAAP80M:370 w S1,550 w S2
·BAAP80L:400 w S1,750 w S2

Explosion-proof Exd motors Motors for use in potentially explosive atmospheres Custom-made flameproof "Exd" electric motors for use in potentially explosive atmospheres, such as fuel dispensing pumps, vapour recovery pumps, paint stirrers, ventilation, offshore... - wherever an explosion risk is present. All motors are built following strict quality procedures and are in accordance with applicable safety Requirements. All motors are certified to European ATEX standards, and many more international standards. For further information about the certifications that apply to our motors, please consult the library section. Single phase Exd approved motors Atex, IECEx and Inmetro approved motors for single phase. Our motors are used in UK, Africa, Australia, .. The available powers, voltage and frequencies: 50W up to 2,2kW 100V, 115V, 200V, 230V, ....50Hz and 60Hz Frame size IEC56, IEC63, IEC71 and IEC80 The available variants for the capacitors are: Permanent run capacitor Start capacitor with mechanical centrifugal switch Start capacitor and permanent run capacitor High efficiency (IEC 60034-30) IE3 up to 550W IE2 up to 1kW Tested according IEC/EN 60034-2-1
ATEX and IECEx approved 24V DC motors Standard range Elnor Motors offers 3 standard models: BAAP80S, BAAP80M and BAAP80L General Characteristcs: Atex approved Ex II 2 G Ex d IIB T4/T3 Gb IECEx approved Ex II 2 G Ex d IIB T4/T3 Gb Ambiant temperatures -40°C +60°C 1500rpm or 3000rpm B34 or B35 flange Connection box with 2xM20 certified gland Available models: BAAP80S: 180W S1, up to 370W S2 BAAP80M: 370W S1, up to 550W S2 BAAP80L: 400W S1, up to 750W S2 BAAP80 standard range: 24V Atex approved motors Contact Elnor for additional information or a price quotation. Customised design 12V, 24V and 48VDC motor with output power up to 900W with ATEX and IECEx approval for use in potentially explosive atmospheres.
ATEX and IECEx approved 24V DC motors Standard range Elnor Motors offers 3 standard models: BAAP80S, BAAP80M and BAAP80L General Characteristcs: Atex approved Ex II 2 G Ex d IIB T4/T3 Gb IECEx approved Ex II 2 G Ex d IIB T4/T3 Gb Ambiant temperatures -40°C +60°C 1500rpm or 3000rpm B34 or B35 flange Connection box with 2xM20 certified gland Available models: BAAP80S: 180W S1, up to 370W S2 BAAP80M: 370W S1, up to 550W S2 BAAP80L: 400W S1, up to 750W S2 BAAP80 standard range: 24V Atex approved motors Contact Elnor for additional information or a price quotation. Customised design 12V, 24V and 48VDC motor with output power up to 900W with ATEX and IECEx approval for use in potentially explosive atmospheres.
Integrated speed control for Exd motor Speed range From 30rpm to 1500rpm. Motor power B14/B5 S1:250W S2-30min: 750W B3 (Ventilated): S1:550W S2-60min: 750W Air over: S1:750W Electrical input: 1ph 230V 50Hz Input signal speed control 4mA – 20mA 0V - 10V Potentiometer (knob control) Integrated design The electronic card is integrated inside the motor. This results in a very compact and explosion proof design. ATEX, IECEx and Inmetro approved The complete motor with the control card included, is approved according: Ex II 2 G Ex d IIB T6 to T3 Gb
